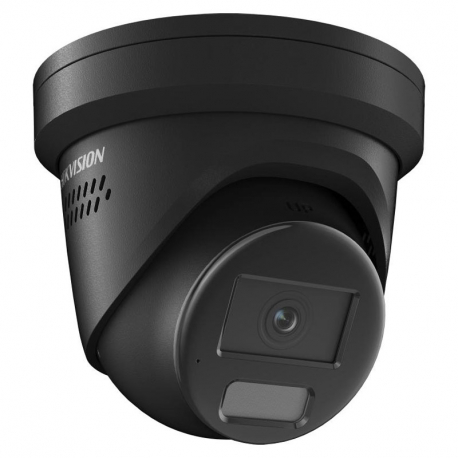

DS-2CD2347G2H-LIU(2.8mm)(BLACK)(eF)
Neuf
Date de disponibilité:
Smart Hybrid Light avec ColorVu la révolution dans le domaine de la vidéosurveillance.
La nouvelle gamme de caméra de surveillance d'Hikvision associe plusieurs technologies exclusives :
Avec les caméras de sécurité ColorVu Hybrid Light vous pouvez choisir le mode d'éclairage qui répond le mieux à vos besoins. Trois options sont possibles :
De nuit, tant que la caméra ne détecte aucune menace, elle reste en lumière infrarouge, ce qui lui confère une plus grande discrétion. Dès qu'elle détecte un humain ou un véhicule, elle bascule en vision couleur pour capter tous les détails avec précision. Dès que la personne ou le véhicule s'éloigne de la caméra, elle repasse en mode infrarouge.
Compatible Windows et MAC OS.
Compatible sans plugin avec les navigateurs Chrome 57.0+, Firefox 52.0+ et Edge 89+.
Les caméras PoE sont livrées sans alimentation. Pour commander une alimentation, rendez-vous sur "produits complémentaires".
Marques | Hikvision |
Camera Hikvision DS-2CD2347G2H-LIU(Black) | |
Image Sensor | 1/1.8" Progressive Scan CMOS |
Max. Resolution | 2688 × 1520 |
Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light |
Shutter Time | 1/3 s to 1/100,000 s |
Day & Night | IR cut filter |
Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° |
Lens | |
Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
Focal Length & FOV | 2.8 mm, horizontal FOV 111.1°, vertical FOV 57.6°, diagonal FOV 138.5° 4 mm, horizontal FOV 95.2°, vertical FOV 48.3°, diagonal FOV 117.4° |
Lens Mount | M16 |
Iris Type | Fixed |
Aperture | F1.0 |
Depth of Field | 2.8 mm: 2.5 m to ∞ 4 mm: 3.1 m to ∞ |
DORI | |
DORI | 2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m 4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m |
Illuminator | |
Supplement Light Type | IR,White Light |
Supplement Light Range | Up to 40 m |
Smart Supplement Light | Yes |
IR Wavelength | 850 nm |
Video | |
Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *The third stream is supported under certain settings. |
Video Compression | Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings. |
Video Bit Rate | 32 Kbps to 8 Mbps |
H.264 Type | Baseline Profile,Main Profile,High Profile |
H.265 Type | Main Profile |
Bit Rate Control | CBR,VBR |
Scalable Video Coding (SVC) | H.264 and H.265 encoding |
Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
Audio | |
Audio Compression | -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
Audio Bit Rate | -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
Audio Sampling Rate | -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
Environment Noise Filtering | -U: Yes |
Network | |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP |
Simultaneous Live View | Up to 6 channels |
API | Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
Network Storage | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR) |
Client | iVMS-4200,Hik-Connect,Hik-Central |
Web Browser | Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Image | |
Image Parameters Switch | Yes |
Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
Day/Night Switch | Day,Night,Auto,Schedule |
Image Enhancement | BLC,HLC,3D DNR |
SNR | ≥ 52 dB |
Wide Dynamic Range (WDR) | 130 dB |
Privacy Mask | 4 programmable polygon privacy masks |
Interface | |
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
Built-in Microphone | -U: Yes |
Reset Key | Yes |
Event | |
Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
Linkage | Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email |
Smart Event | Scene change detection |
Deep Learning Function | |
Face Capture | Yes |
Perimeter Protection | Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) |
General | |
Power | 12 VDC ± 25%, 0.41 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6 W |
Material | Cover: Metal, main body: Metal |
Dimension | Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5") |
Package Dimension | 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3") |
Weight | Approx. 770 g (1.7 lb.) |
With Package Weight | Approx. 1040 g (2.3 lb.) |
Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
General Function | Heartbeat,mirror,password reset via email,pixel counter,anti-banding |
Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
Approval | |
EMC | CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
Environment | CE-RoHS: 2011/65/EU |
Protection | IP67: IEC 60529-2013 |
Fiche technique Hikvision DS-2CD2347G2H-LIU(Black)
Téléchargement (1008.23k)
